Plan for an outage at your CDN or edge provider

Decide before the edge fails

When a global CDN, WAF and edge platform fails, traffic has three places to go: a regional WAF you operate, such as Azure Application Gateway; a second CDN; or straight to the origin. Each keeps less of what the edge did. A regional WAF keeps managed rules from the same product family but gives up caching, anycast distribution and edge DDoS absorption. A second CDN keeps a cache and a global network but enforces another vendor's rules. The direct path keeps nothing, and on Cloudflare it also publishes the origin address the edge was hiding. ^[1][2][10]

Whether to build any of them starts where Microsoft's architecture guidance starts: in most situations you won't need a second ingress path, and one built carelessly can lower availability by adding components, control planes and configuration that must stay in step. ^[1] Microsoft's January 28, 2026 Front Door high-availability guide, written for customers who build one anyway, describes a manual break-glass design: Traffic Manager in front, health checks off, and an operator who switches an endpoint when outside monitoring shows the edge has failed. ^[2]

The security cost is easy to underrate because the second path is never dormant. Disabling a Traffic Manager endpoint removes it from DNS answers but leaves the service behind it running. ^[3] The gateway, second CDN property or origin listener stays on the internet every day, which is why Microsoft warns that an attacker who finds an unprotected secondary path can use it while the primary still has its WAF. ^[1] Build a second path only if it will be secured and tested like the first; otherwise plan to stay down on purpose, and never improvise a direct-to-origin bypass mid-incident.

What an edge outage takes with it

Three primary incident reports from late 2025 show what customers lost; their delivery mechanics are analyzed elsewhere. Azure Front Door's October 29, 2025 outage ran from 15:41 UTC to 00:05 UTC the next day. Customers saw connection timeouts and DNS resolution errors, because Front Door's internal DNS service runs on the same edge sites that were crashing. The affected list included the Azure portal, parts of Microsoft Entra ID, Defender External Attack Surface Management, Sentinel threat intelligence and customers' ability to open support cases. ^[4]

Microsoft's own services show failover under pressure. The Entra and Intune portals and Azure AD B2C failed over. The Azure portal moved away from Front Door at 17:26 UTC, 1 hour 45 minutes after impact began, and parts of it with no fallback of their own, such as Marketplace, kept failing. ^[4] Failover is per dependency: a page served through the standby path still breaks if one of its components stays on the failed one.

The edge also stopped accepting changes. After mitigation Microsoft blocked all Front Door customer configuration changes at the Azure Resource Manager level until November 5, 2025, and propagation stayed slower for every operation, WAF changes and cache purges included. ^[4] A customer who needed an emergency WAF rule that week had to put it somewhere other than the edge.

Cloudflare's November 18, 2025 failure stopped core traffic from 11:20 UTC until about 14:30. Turnstile failed to load, so most users could not sign in to the Cloudflare dashboard, whose login page uses it. Access authentication failed for most users until Cloudflare applied a bypass at 13:05, though existing sessions continued. Sites on the older FL proxy kept serving, but every request got a bot score of zero, so rules that block bots turned away large numbers of real visitors. ^[5]

On December 5, 2025 the failure lasted about 25 minutes, from 08:47 to 09:12 UTC, and touched about 28 percent of Cloudflare's HTTP traffic. The customers hit were those on the FL1 proxy with the Cloudflare Managed Ruleset deployed, whose every request returned HTTP 500. The trigger came from protective work: while raising the WAF body buffer from 128 KB to 1 MB for CVE-2025-55182 in React Server Components, Cloudflare switched off an internal WAF testing tool through its global, non-gradual configuration system, and that change hit a bug in FL1. ^[6]

Read for planning, the reports say three things. The management plane, sign-in and support channel can fail with the data plane. A security feature can be the failure condition, or keep running on wrong inputs. And a switch that waits on a human decision and a DNS cache helps only with the long outages.

Map what the edge does for you

Build the inventory from the edge configuration. Microsoft's question list works for any provider: whether you rely on caching and whether the origin can carry the load without it; whether the rules engine routes or rewrites requests; whether the WAF protects the application; whether you restrict traffic by IP address or geography; who issues the TLS certificates; how the origin is restricted to edge traffic and whether it accepts traffic from anywhere else; and whether clients depend on the edge's HTTP/2 support. ^[1]

Add the functions the 2025 reports exposed: edge-hosted authentication such as Cloudflare Access, challenge widgets such as Turnstile that your sign-in pages call, bot scores referenced in your rules, and the provider's dashboard and API as the place emergency changes would be made. ^[5] Give each line an owner and a note of what replaces it on every candidate path, or a statement that nothing does.

The matrix records documented answers and marks reasoned ones. A regional WAF keeps rule continuity and gives up caching and edge absorption; a second CDN keeps caching and absorption and gives up rule continuity; the direct path gives up all of it. Edge-hosted sign-in stays with the original vendor on every path, which is easy to miss when failover is treated as a routing change.

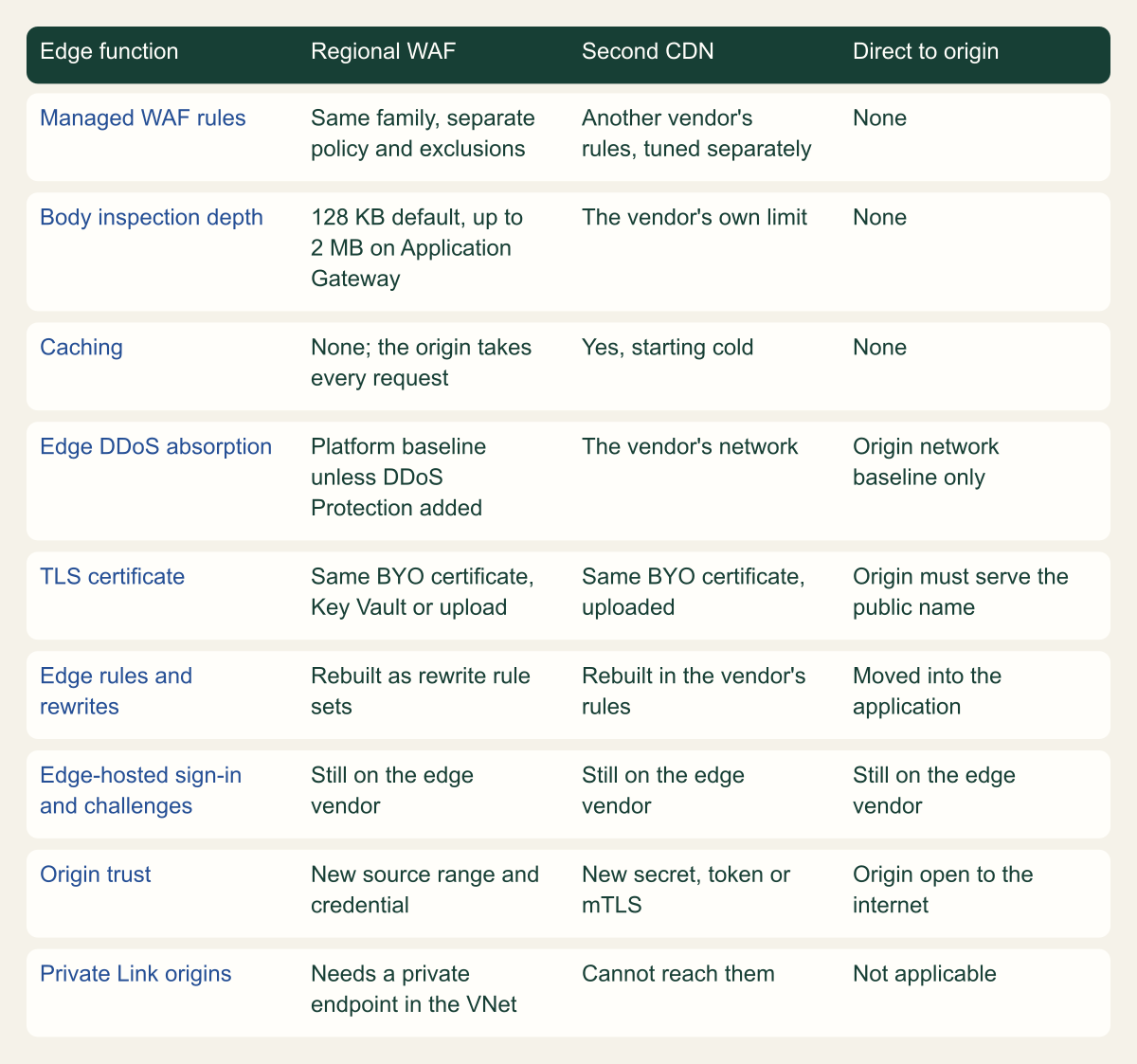

Source. Conceptual comparison based on Microsoft's Front Door high-availability and global routing guidance, Azure WAF limits, and Cloudflare's origin, proxy status, Access and Turnstile documentation, reviewed October 9 and 10, 2026. ^{[1][2][16][9][10][11][12]}

Method. Conceptual matrix. Regional WAF cells follow Microsoft's Application Gateway scenario; second CDN cells follow its alternative CDN scenario; direct to origin follows Cloudflare's DNS-only behavior. The cold cache and the origin certificate requirement are reasoned inferences, not documented statements.

Accessible table and figure data

Figure 1 accessible table

Edge function	Regional WAF	Second CDN	Direct to origin
Managed WAF rules	Same family, separate policy and exclusions	Another vendor's rules, tuned separately	None
Body inspection depth	128 KB default, up to 2 MB on Application Gateway	The vendor's own limit	None
Caching	None; the origin takes every request	Yes, starting cold	None
Edge DDoS absorption	Platform baseline unless DDoS Protection added	The vendor's network	Origin network baseline only
TLS certificate	Same BYO certificate, Key Vault or upload	Same BYO certificate, uploaded	Origin must serve the public name
Edge rules and rewrites	Rebuilt as rewrite rule sets	Rebuilt in the vendor's rules	Moved into the application
Edge-hosted sign-in and challenges	Still on the edge vendor	Still on the edge vendor	Still on the edge vendor
Origin trust	New source range and credential	New secret, token or mTLS	Origin open to the internet
Private Link origins	Needs a private endpoint in the VNet	Cannot reach them	Not applicable

Figure 1 accessible table

Edge function	Regional WAF	Second CDN	Direct to origin
Managed WAF rules	Same family, separate policy and exclusions	Another vendor's rules, tuned separately	None
Body inspection depth	128 KB default, up to 2 MB on Application Gateway	The vendor's own limit	None
Caching	None; the origin takes every request	Yes, starting cold	None
Edge DDoS absorption	Platform baseline unless DDoS Protection added	The vendor's network	Origin network baseline only
TLS certificate	Same BYO certificate, Key Vault or upload	Same BYO certificate, uploaded	Origin must serve the public name
Edge rules and rewrites	Rebuilt as rewrite rule sets	Rebuilt in the vendor's rules	Moved into the application
Edge-hosted sign-in and challenges	Still on the edge vendor	Still on the edge vendor	Still on the edge vendor
Origin trust	New source range and credential	New secret, token or mTLS	Origin open to the internet
Private Link origins	Needs a private endpoint in the VNet	Cannot reach them	Not applicable

Download imageDownload table CSV

Three places traffic can go

In Microsoft's first scenario the target is a regional WAF. A primary Traffic Manager profile with weighted routing and health checks off points at Front Door and, disabled until needed, at a nested secondary profile. That profile uses performance routing across Application Gateway WAF_v2 instances in the regions with meaningful user volume, probes them over HTTPS and answers with a 300-second TTL, standing in for Front Door's latency-based routing. Application Gateway does not cache, runs only where you deploy it, and costs money while idle: about $200 to $400 a month for WAF_v2 at minimal capacity, by Microsoft's estimate. ^[2]

The second scenario uses a second CDN: one weighted profile with Front Door enabled and the other CDN's edge hostname disabled. The standby needs the same custom domain, origin configuration, caching rules, compression and query string handling, the same bring-your-own certificate, and WAF rules matched as closely as its product allows. ^[2] It keeps a global network and a cache, although a cache that carried no traffic before the switch can be expected to start cold and send the origin a burst of misses.

Direct to origin is the improvised third option, which Microsoft's guide does not offer. On Cloudflare it usually means switching a proxied record to DNS only, after which Cloudflare answers with the origin's real address and stops applying WAF rules, caching and its other products to that hostname. ^[10]

Private origins narrow the choice. Microsoft does not recommend Front Door Private Link origins for either scenario, because other CDNs cannot reach them and Application Gateway needs its own virtual network and private endpoint configuration to do so. ^[2] A Cloudflare Tunnel origin has no publicly routable address at all. ^[9] It follows that the most private origins are the hardest to give a second path, and adding one can mean making a private origin public.

Security controls the bypass path drops

The WAF changes even when the brand does not. Microsoft's guide pairs Default Rule Set 2.1 on Front Door with CRS 3.2 or 4.0 on Application Gateway, but the Application Gateway rule set reference lists no CRS 4.0, and DRS 2.2 was announced as generally available on both on March 17, 2026. ^[2][17][18] Even on one version they are separate policies, so match the Application Gateway rule set to Front Door's, test it independently and document every exclusion on both. ^[2] Both inspect the first 128 KB of a request body by default. Application Gateway with CRS 3.2 or DRS can be raised to 2 MB and in prevention mode blocks bodies over its size limit; Microsoft does not document what Front Door does with the rest of a larger body. ^[16][2] Moving from CloudFront to an Application Load Balancer takes AWS WAF from a default 16 KB of body, configurable to 64 KB, to a fixed 8 KB. ^[14] The same payload can be blocked on one path and pass on the other. A new Application Gateway WAF policy also starts in detection mode, so a standby never switched to prevention logs attacks instead of blocking them. ^[2]

Volumetric protection changes too. An origin that accepts only Front Door traffic is shielded by Front Door from layer 3 and layer 4 DDoS attacks. ^[1] An Application Gateway public IP has the Azure platform's baseline protection, which Microsoft says lacks workload-specific tuning, telemetry, cost protection and availability guarantees; its network security groups filter packets without stopping volumetric attacks, and Microsoft suggests Azure DDoS Protection on those addresses for production. ^[2]

Rules keyed to the client address need a second look on every path, because behind any proxy the WAF sees the proxy's address unless told to read a header. Google Cloud Armor, for example, exposes origin.user_ip, filled from a header named in userIpRequestHeaders such as True-Client-IP, and falling back to origin.ip when that header is missing or invalid. ^[13] Through a second CDN, allowlists, geographic rules and rate limits may see only the CDN's addresses. On a direct path, a header-derived client address is whatever the client sends, unless the network layer limits who can connect.

Edge-hosted sign-in does not move with the traffic. Turnstile requires your server to call Cloudflare's Siteverify endpoint for every token ^[12], so a sign-in form that uses it depends on Cloudflare on every path, and its owner must decide in advance whether a failed verification blocks the sign-in or skips the challenge. An application behind Cloudflare Access should validate the Cf-Access-Jwt-Assertion header against the account's signing key. ^[11] If it does, a direct path fails closed. If it trusts that Access ran at the edge and checks nothing, a direct path publishes an unauthenticated application, which is reason enough never to improvise a bypass for anything behind edge authentication.

Origin trust that works on both paths

Each edge has its own proof that a request came through it, and none accepts another provider's proof. Front Door origins should combine the AzureFrontDoor.Backend service tag with a check of the X-Azure-FDID header against the profile's identifier, because other Azure customers' Front Door profiles use the same addresses. ^[7] CloudFront origins pair a secret origin custom header with the AWS-managed prefix list in the load balancer's security group; AWS says to treat the header like a credential and rotate it by adding a second header, updating the listener rule, then removing the first. ^[8] With Cloudflare's Authenticated Origin Pulls, Cloudflare's own certificate proves only that a request came from Cloudflare's network, so stricter checks need your own uploaded certificate. ^[9]

For origins that must accept both paths, Microsoft lists CDN-agnostic controls: token-based origin authentication with HMAC or signed URLs, mutual TLS, custom origin headers and IP address filtering. ^[2] The editorial recommendation is to give each path its own credential, such as a client certificate from your own CA for each edge or a separate secret header per path, to allow each path's source ranges at the network layer, and to refuse any request whose credential and source range do not match. Separate credentials let you revoke one path after a leak or a vendor compromise without breaking the other.

Then test the failure Microsoft names: an origin accidentally opened to other paths, including other customers' Front Door profiles. ^[1] Each of these requests should behave as stated:

• Sent straight to the origin address with no header or client certificate: refused.
• Sent through a different profile, account or zone on the same edge provider: refused.
• Carrying the previous, rotated secret: refused.
• Sent through the standby path with its own credential while that path is disabled in DNS: served.

DNS, certificates and the switch

The switching record has to live where the failed edge cannot reach it. In Microsoft's design the custom hostname is a CNAME to Traffic Manager, which returns either the Front Door endpoint or the standby. ^[2] If the switching record is hosted by the edge provider, the switch depends on a dashboard and control plane that the November 18 report shows can be out of reach. ^[5] Traffic Manager cannot sit at the zone apex through a CNAME, so an apex name needs alias records from a provider such as Azure DNS. ^[2] Traffic Manager is then a dependency of its own, and Microsoft advises planning for a prolonged Traffic Manager outage by pointing DNS straight back at Front Door. ^[1]

Timing comes mostly from caches. Microsoft recommends TTLs of 300 to 600 seconds, sets 300 on both Traffic Manager profiles, and says to lower the hostname's CNAME TTL to 60 to 300 seconds at least 24 hours before moving it onto Traffic Manager, warning that propagation typically takes 5 to 10 minutes and can take 48 hours. ^[2] Cloudflare fixes proxied records at a 300-second TTL ^[10], so a DNS-only bypass waits on resolvers too. For the health-based secondary profile, Traffic Manager's defaults of a 30-second interval, three tolerated failures and a 10-second timeout mark an endpoint Degraded about 100 seconds after the first failed probe; fast probing at 10 seconds with a 9-second timeout cuts that to 39. ^[3] The cached answer, not detection, sets the floor.

Microsoft's guide is explicit that the primary profile should not fail over automatically: Traffic Manager probes originate only from US-based Azure regions, so against an anycast edge they almost always reach US points of presence and leave the rest unverified. ^[2] Traffic Manager also answers as if every endpoint were online when all of them are degraded, so a probe failure that hits both paths moves no traffic. ^[3] The global guide adds that mission-critical solutions require automated failover where possible, while telling global workloads to turn endpoint monitoring off. ^[1] The two fit if the trigger is automated but the probe is not Traffic Manager's: outside-in synthetic checks from the regions where users are, feeding a pre-approved script that disables the Front Door endpoint and that an operator can also run by hand. ^[1][2] That is the reading followed here.

Certificates have to be portable before the outage. Front Door managed certificates cannot be exported, so Microsoft requires bring-your-own certificates on both paths, with a PFX and private key for Application Gateway, held in Key Vault or uploaded directly. ^[2] Managed validation also assumes the hostname's CNAME points directly at Front Door, which stops being true once Traffic Manager is in the chain. ^[1] CloudFront accepts certificates only when requested or imported in the us-east-1 Region of AWS Certificate Manager ^[8], so a shared certificate is installed and renewed in two places, and Microsoft's guide makes testing renewal on every platform part of the design. ^[2]

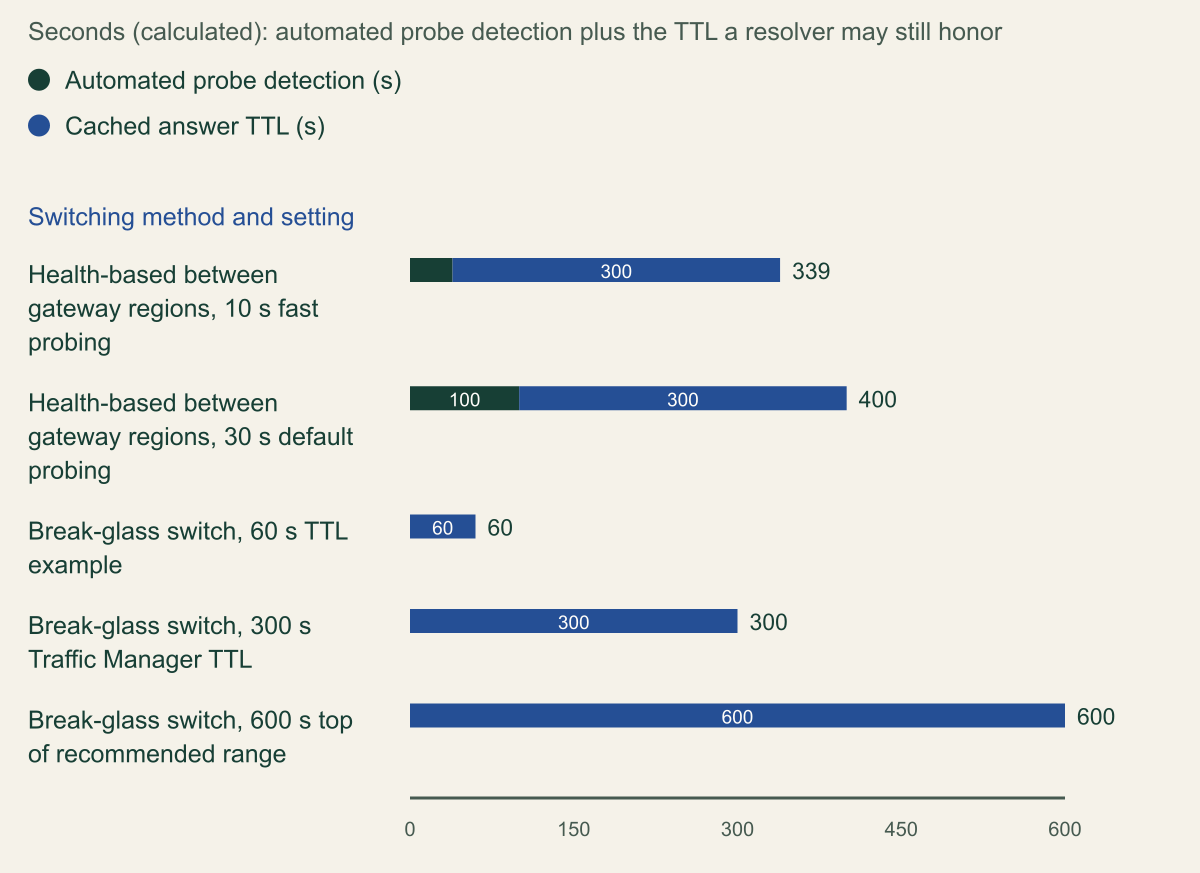

Source. Calculated from Microsoft's Azure Front Door high-availability guide (ms.date January 28, 2026) and Traffic Manager endpoint monitoring documentation, both reviewed October 9, 2026. ^[2][3]

Method. Probe detection = tolerated failures x probing interval + probe timeout, the time from the first failed probe to the fourth consecutive failure in Microsoft's walkthrough: 3 x 10 + 9 = 39 and 3 x 30 + 10 = 100. Break-glass rows have no automated detection; the time to notice and decide is excluded because no source documents it. TTL is the longest a resolver may honor a cached answer; resolvers that keep answers longer, and the wait for the first failed probe, are excluded. ^[2][3]

Accessible table and figure data

Figure 2 accessible table

Switching method and setting	Automated probe detection (s)	Cached answer TTL (s)
Health-based between gateway regions, 10 s fast probing	39	300
Health-based between gateway regions, 30 s default probing	100	300
Break-glass switch, 60 s TTL example	0	60
Break-glass switch, 300 s Traffic Manager TTL	0	300
Break-glass switch, 600 s top of recommended range	0	600

Figure 2 accessible table

Switching method and setting	Automated probe detection (s)	Cached answer TTL (s)
Health-based between gateway regions, 10 s fast probing	39	300
Health-based between gateway regions, 30 s default probing	100	300
Break-glass switch, 60 s TTL example	0	60
Break-glass switch, 300 s Traffic Manager TTL	0	300
Break-glass switch, 600 s top of recommended range	0	600

Download imageDownload table CSV

Decide whether a second path is worth building

Microsoft prices a second path in four parts: running the standby, the operational complexity of every feature that exists on one path and not the other, extra CNAME lookups, and engineering time taken from other work. ^[1] Set that against the 2025 durations of about 25 minutes, about three hours and more than eight hours. ^[4][5][6] A second path covers only what remains of an outage after detection, decision and the TTL. In a hypothetical case with 15 minutes to detect and decide and a 300-second TTL, users reach the standby for at most the last five minutes of a 25-minute incident, but for more than seven hours of an eight-hour one.

Microsoft also says feature parity with Front Door should not be a strict requirement, and that the second path should carry what business continuity needs, even in limited capacity. ^[1] That makes partial failover the realistic shape: static content and read-only pages on the standby, sign-in and state-changing operations either fully protected there or deliberately left on the primary. The obvious choice is wrong in at least three common cases:

• A high-value authenticated API looks like the first candidate for failover, but if the standby WAF has not been tested against it, failing over trades an availability incident for an exposure.
• A static marketing site looks too unimportant to protect, yet it is the cheapest case for a second CDN: cacheable, no sign-in and a small rule set to keep in step.
• An application behind edge authentication gains nothing from failover unless sign-in has another path, and becomes dangerous on a direct path if it does not validate the edge's token.

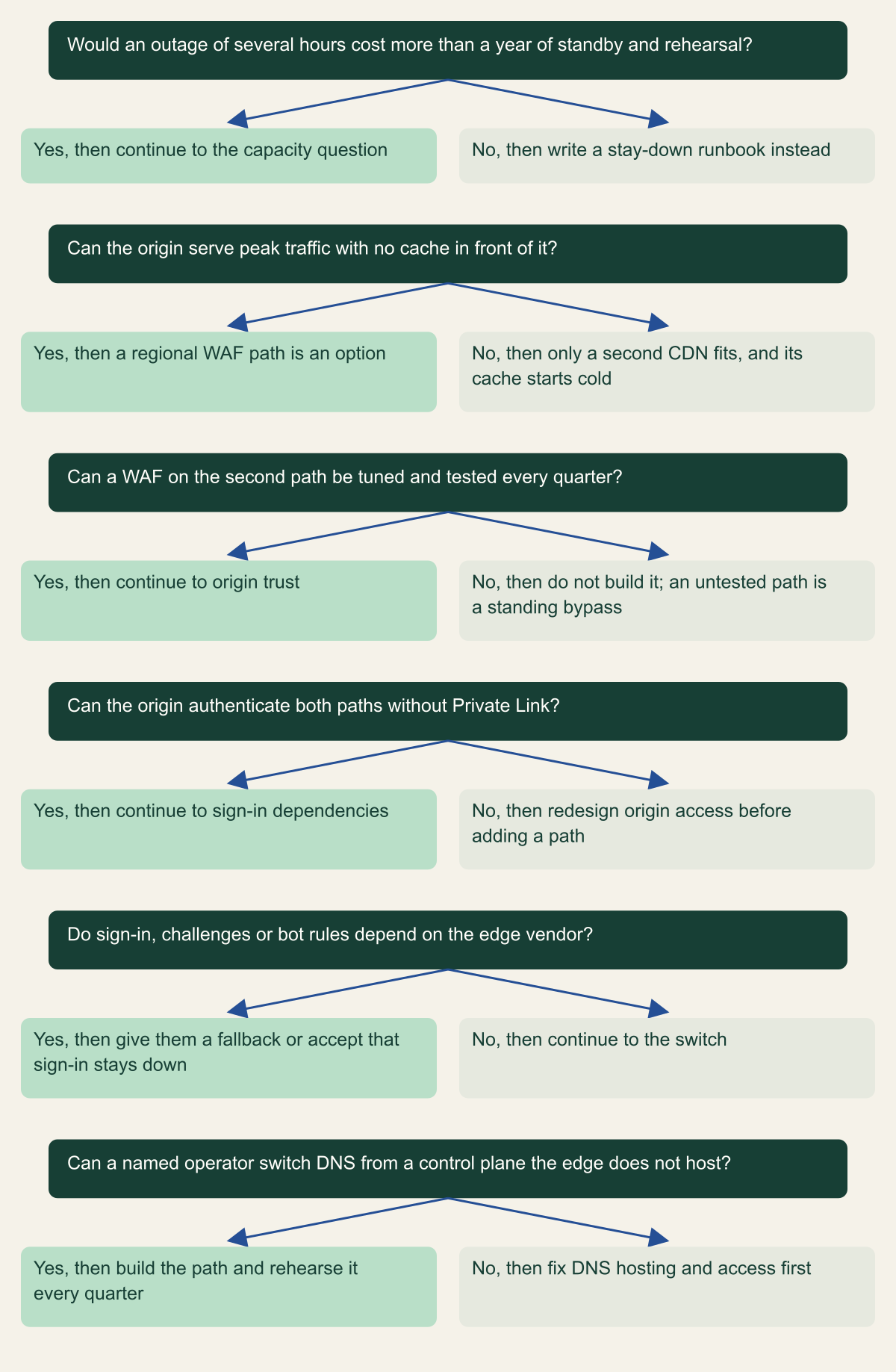

Source. Conceptual decision aid based on Microsoft's global routing redundancy guidance and Front Door high-availability guide, reviewed October 9, 2026. ^[1][2]

Method. Conceptual ordering of documented tradeoffs, cheapest disqualifier first. Answer each question for the specific application or hostname, not for the whole estate. ^[1][2]

Accessible table and figure data

Figure 3 accessible table

Question	Yes, then	No, then
Would an outage of several hours cost more than a year of standby and rehearsal?	continue to the capacity question	write a stay-down runbook instead
Can the origin serve peak traffic with no cache in front of it?	a regional WAF path is an option	only a second CDN fits, and its cache starts cold
Can a WAF on the second path be tuned and tested every quarter?	continue to origin trust	do not build it; an untested path is a standing bypass
Can the origin authenticate both paths without Private Link?	continue to sign-in dependencies	redesign origin access before adding a path
Do sign-in, challenges or bot rules depend on the edge vendor?	give them a fallback or accept that sign-in stays down	continue to the switch
Can a named operator switch DNS from a control plane the edge does not host?	build the path and rehearse it every quarter	fix DNS hosting and access first

Figure 3 accessible table

Question	Yes, then	No, then
Would an outage of several hours cost more than a year of standby and rehearsal?	continue to the capacity question	write a stay-down runbook instead
Can the origin serve peak traffic with no cache in front of it?	a regional WAF path is an option	only a second CDN fits, and its cache starts cold
Can a WAF on the second path be tuned and tested every quarter?	continue to origin trust	do not build it; an untested path is a standing bypass
Can the origin authenticate both paths without Private Link?	continue to sign-in dependencies	redesign origin access before adding a path
Do sign-in, challenges or bot rules depend on the edge vendor?	give them a fallback or accept that sign-in stays down	continue to the switch
Can a named operator switch DNS from a control plane the edge does not host?	build the path and rehearse it every quarter	fix DNS hosting and access first

Download imageDownload table CSV

Rehearse the switch

Microsoft's guide asks for failover and failback to be tested in non-production first and then every quarter. Before moving production DNS, it suggests editing the hosts file on a non-production workstation so the custom domain resolves to the standby, and it asks for WAF rule sets to be audited for consistency with every exclusion documented. ^[2] The global guide's validation questions make good acceptance criteria: traffic moves when the primary is unavailable, both paths carry production load with little warning, and the degraded state exposes nothing new. ^[1]

A security rehearsal does more than load the home page. Run the same WAF test set through both paths and compare decisions rule by rule. Repeat the origin refusal tests. Confirm that sign-in works on the standby, or fails the way its owner chose. Check that the standby WAF's logs reach the same detection pipeline. Time the switch from the decision to the first request seen on the standby, from resolvers in more than one region.

Run the switch from the CLI or REST API, not the portal: the October 29 outage impaired the Azure portal, and Microsoft's advice for that case is to manage resources programmatically. ^[4][1] The permission to switch is also the permission to send every user elsewhere, because Microsoft.Network/trafficManagerProfiles/externalEndpoints/write lets its holder add an external endpoint or update any property of an existing one, not only its status. ^[15] Grant it through a narrow role to a small named group, test the role outside production and alert on every use. After failback, rotate anything the incident exposed, including an origin address published by a DNS-only change. ^[9]

{
  "Name": "Edge failover operator (example)",
  "IsCustom": true,
  "Description": "Example: enable or disable Traffic Manager external endpoints during an edge outage. Cannot create, delete or reconfigure profiles.",
  "Actions": [
    "Microsoft.Network/trafficManagerProfiles/read",
    "Microsoft.Network/trafficManagerProfiles/externalEndpoints/read",
    "Microsoft.Network/trafficManagerProfiles/externalEndpoints/write"
  ],
  "NotActions": [],
  "AssignableScopes": [
    "/subscriptions/00000000-0000-0000-0000-000000000000/resourceGroups/rg-edge-failover"
  ]
}

When to stay down instead

Staying down is a decision, and often the safer one. Choose it when the only path left is direct to origin and the origin relies on the edge for authentication, WAF or DDoS protection; when the standby WAF has not been tested against the current application this quarter; when the origin cannot carry uncached peak traffic, so failover moves the outage instead of ending it; or when the remaining outage is likely to be shorter than the decision plus the TTL. Publishing an origin address is not easily undone: Cloudflare advises rotating origin IPs after onboarding because historical DNS records are kept ^[9], and an emergency DNS-only change leaves the same trail.

A stay-down plan still needs preparation: provider health alerts routed to the right people, programmatic access to every console the team would use, a communication channel that does not run through the failed provider, and a list of edge changes to apply once the provider accepts changes again. After its October 29 outage, Front Door did not accept customer configuration changes until November 5. ^[4]
