Plan Azure disaster recovery for a region without a pair

Name the region situation first

An Azure region is in one of three situations for disaster recovery, and each needs a different plan. In Microsoft's region pairs table, retrieved on October 10, 2026, 28 of the 49 regions open to every customer have a pair you can also deploy into, 8 are paired with a restricted-access region, and 13 have no pair at all: Austria East, Belgium Central, Chile Central, Denmark East, Indonesia Central, Israel Central, Italy North, Malaysia West, Mexico Central, New Zealand North, Poland Central, Qatar Central and Spain Central. ^[1]

In a region with no pair, 18 of the 58 built-in multiregion capabilities in Microsoft's service table are unavailable, because they operate only between paired regions. Almost all are copies and failovers that Azure runs on your behalf: geo-redundant storage (GRS) for blobs, Data Lake Storage, files, queues and tables, Azure Backup's cross-region restore, the geo-replicated automated backups of SQL Database and SQL Managed Instance, Cosmos DB periodic backups, and Microsoft-managed failover for Key Vault and four other services. The other 40 rows, mostly replication you configure yourself, work between any two regions, including blob object replication, SQL failover groups, Cosmos DB multi-region accounts and Site Recovery. ^[2]

The work is therefore to pick a recovery region yourself, on residency, latency and capacity, configure replication service by service, and get backup copies out of the region with tools that do not depend on a pair. With a restricted-access pair the built-in features stay, but anything you deploy into the pair region needs an approved access request first. ^[1][2][3]

This is less of a departure than it sounds. Microsoft tells paired-region customers not to treat Microsoft-managed failover as their primary recovery approach, and says GRS accounts fail over that way only in catastrophic situations after repeated failed recovery attempts. A nonpaired region removes that last-resort copy. It does not change what a tested recovery plan has to contain. ^[1]

How the regions were counted

The counting rule is mechanical so that anyone can repeat it. The All tab of the pairs list has 57 rows. A row is a restricted-access region when its own region cell carries Microsoft's restricted icon; 8 do, from Australia Central 2 to UAE Central. Of the other 49, a row showing N/A has no pair, a row whose partner carries the icon has a restricted-access pair, and the rest have an open pair. Pairing is read in each row's direction, so Brazil South counts as openly paired with South Central US although that pair is not reciprocal. Sweden South has no row of its own and is not counted. The pairs page was last updated June 26, 2026, and the regions list, updated September 23, 2026, carries the same 57 rows and icons. ^[1][4]

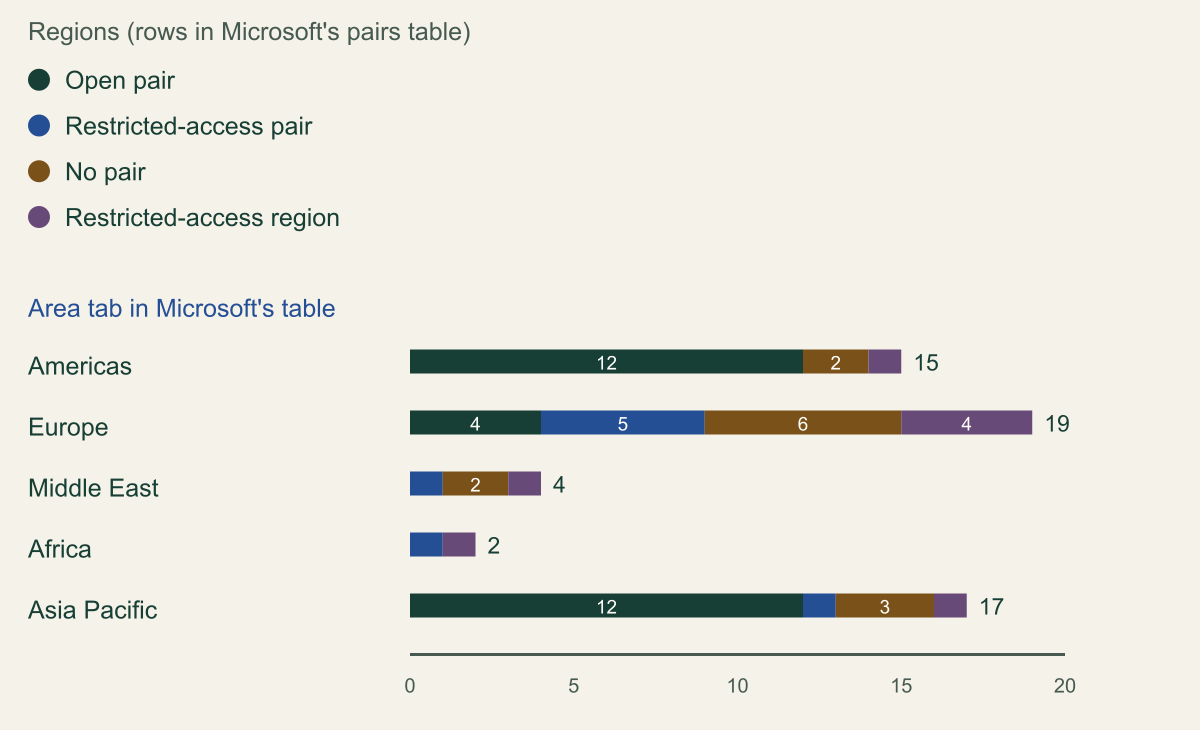

The chart groups the rows by Microsoft's area tabs. Europe is where pairing helps least. Of its 15 regions open to every customer, only North Europe, West Europe, UK South and UK West have an openly accessible pair. France Central, Germany West Central, Norway East, Sweden Central and Switzerland North are paired with restricted-access regions, and six regions have no pair. The Americas and Asia Pacific each have 12 openly paired regions. ^[1]

Two more facts from the regions list shape the design. All 13 nonpaired regions list three availability zones, which matches Microsoft's statement that many regions aren't paired and instead use availability zones as their primary means of redundancy. And each is the only region the list shows in its geography: Italy North is the whole Italy geography and Poland Central the whole Poland geography. Microsoft treats geographies as data residency boundaries, so any second region for these workloads sits outside the boundary. ^[1][4][5]

The service table was retrieved the same day; its footer shows June 2, 2026 and its page metadata September 28, 2026. Both tables change as regions launch, so recount before relying on these figures.

Source. Counted from the area tabs of the Azure region pairs list on Microsoft Learn (page updated June 26, 2026), retrieved October 10, 2026; cross-checked against the List of Azure regions (updated September 23, 2026). ^[1][4]

Method. One count per table row (57 rows). Restricted-access region: the region cell carries the restricted icon. Of the other rows: N/A partner is no pair; a partner with the icon is a restricted-access pair; otherwise open pair. Pairing read in each row's direction. Sweden South has no row and is not counted. ^[1]

Accessible table and figure data

Figure 1 accessible table

Area tab	Open pair	Restricted-access pair	No pair	Restricted-access region
Americas	12	0	2	1
Europe	4	5	6	4
Middle East	0	1	2	1
Africa	0	1	0	1
Asia Pacific	12	1	3	1

Figure 1 accessible table

Area tab	Open pair	Restricted-access pair	No pair	Restricted-access region
Americas	12	0	2	1
Europe	4	5	6	4
Middle East	0	1	2	1
Africa	0	1	0	1
Asia Pacific	12	1	3	1

Download imageDownload table CSV

What a pair provides and what it does not

Microsoft lists three benefits of using a region's pair as the secondary. In a geography-wide outage, one region of every pair is prioritized for recovery. Azure strives to stagger planned platform updates across the two regions of a pair. And almost every pair sits inside one geography, which keeps replicated data within the same residency boundary. You cannot choose the pair, and for storage the secondary is fixed by the primary region and cannot be customized. ^[1][6]

The pair-based failovers are explicitly a last resort. For GRS storage, Microsoft-managed failover is likely to cover a whole region and can't be initiated for one account, subscription or customer, and Microsoft says not to rely on it; customer-managed failover typically completes within 60 minutes, and replication lag is expected to stay under 15 minutes without a guarantee. Key Vault's managed failover is best effort, can take several hours after the loss of the region, and leaves the vault read-only in the secondary region, where vault properties, access policies and firewall settings cannot be changed. ^[6][7]

It follows that a nonpaired region mainly loses this passive layer of copies Microsoft keeps and may one day fail over. What a recovery plan needs in any region, agreed objectives, a secondary you control and a rehearsed failover, stays the same. One paired-region benefit does need a substitute. Because Azure staggers updates across pairs, Microsoft's SQL Database guidance asks you to set different maintenance windows for the servers in each region when geo-replication or failover groups span nonpaired regions. ^[8]

Capabilities that stop at the pair

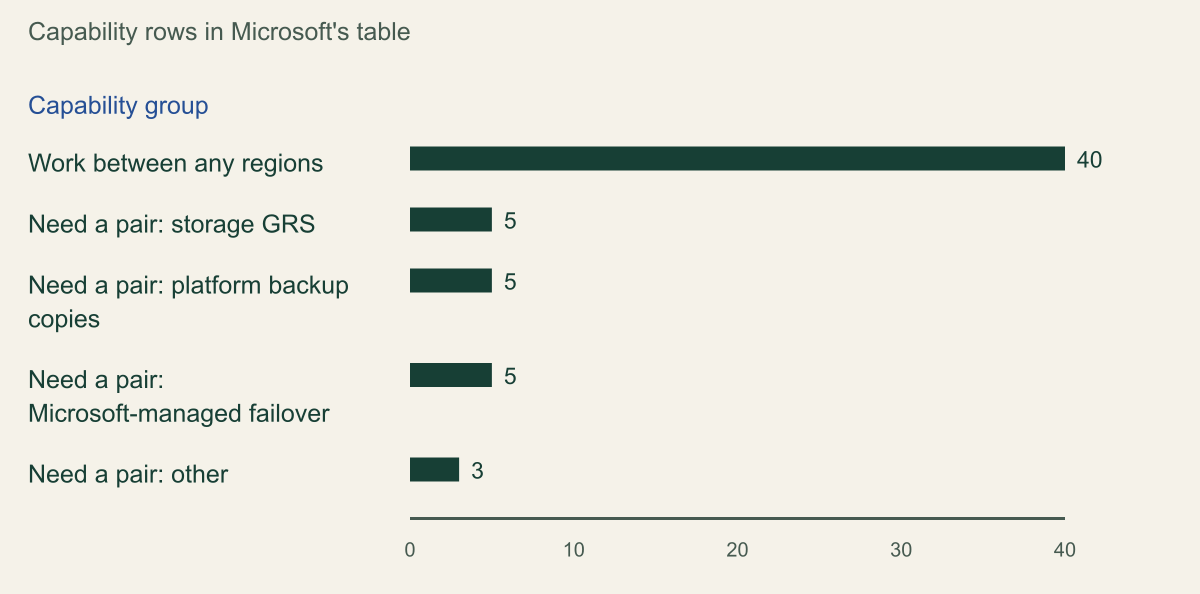

Grouped by what they do, the 18 pair-only rows fall into three groups of five and a remainder of three: storage GRS, platform backup copies and Microsoft-managed failover, plus Event Grid metadata recovery, Storage Actions and Fabric. Each is something Azure does for you. The 40 rows that work anywhere are mostly replication, routing and management you configure; four are labelled nonregional services (public and private DNS zones, Front Door and Traffic Manager), which Microsoft marks in both columns because they are not tied to a region. ^[2]

Any region does not mean every combination. A footnote on the table marks region selection constraints for Managed HSM replication, the global tier of Load Balancer, Monitor Logs workspace replication, NetApp Files cross-region replication and Notification Hubs in nonpaired regions. Monitor Logs replicates only within a region group, and NetApp Files replicates between region pairs Microsoft selects. Databricks managed disaster recovery is listed in preview, so do not build a production plan on it without accepting preview terms. ^[2]

A second tab lists 30 services with no built-in multiregion support at all, including Application Gateway, Azure Firewall, Bastion, Container Apps, Functions, Logic Apps, Virtual Network, VPN Gateway, ExpressRoute and Disk Storage. Those need your own second deployment in a paired region too, so the absence of a pair changes nothing for them, but they belong in the same inventory. The table below maps each pair-only capability to the documented alternative that works between any regions. ^[2]

Source. Counted from the Built-in multiregion support tab of Azure services that support multiple regions on Microsoft Learn, retrieved October 10, 2026 (footer date June 2, 2026; metadata update September 28, 2026). ^[2]

Method. One count per capability row (58 rows, 48 services). Need a pair: Paired regions marked Yes and Nonpaired regions empty; any region: both marked Yes; footnotes ignored. Groups: rows for Azure Backup or a backup support type are backup copies; Geo-redundant storage rows are storage GRS; Microsoft-managed failover rows are managed failover; Event Grid, Storage Actions and Fabric are other. ^[2]

Accessible table and figure data

Figure 2 accessible table

Capability group	Capability rows
Work between any regions	40
Need a pair: storage GRS	5
Need a pair: platform backup copies	5
Need a pair: Microsoft-managed failover	5
Need a pair: other	3

Figure 2 accessible table

Capability group	Capability rows
Work between any regions	40
Need a pair: storage GRS	5
Need a pair: platform backup copies	5
Need a pair: Microsoft-managed failover	5
Need a pair: other	3

Download imageDownload table CSV

Storage without GRS

For Blob Storage, Microsoft's reliability guide points nonpaired regions to object replication. It copies block blobs asynchronously from a source account to a destination account in any region, including another subscription or Microsoft Entra tenant. It needs blob versioning on both accounts and change feed on the source, and handles block blobs only. It skips snapshots, excludes accounts with a hierarchical namespace and fails for blobs written with a customer-provided key. A source can replicate to at most two destination accounts, a policy holds up to 1,000 container rules, and by default only blobs created after a rule exists are copied unless you widen its copy scope. ^[6][9]

Failover becomes your operation. While a rule is active, writes to the destination container fail with 409 Conflict; to promote the copy you delete the rule or the whole policy and point clients at the destination account. Customer-managed account failover is not supported for either account in an object replication policy, so the planned-failover drill GRS customers use does not apply. Priority replication, which replicates 99.0 percent of objects within 15 minutes when both accounts are on the same continent and is backed by an SLA, gives a measurable lag target. Moving a blob to the archive tier in either account makes its replication fail. ^[9]

Object replication copies mistakes as faithfully as data. Deleting a blob in the source turns its current version into a previous version and that state replicates, so recovery from deletion still depends on versioning and soft delete, while an immutability policy on the destination can make replicated updates and deletions fail, leaving the two accounts out of step. ^[9]

The other storage types have fewer options. Data Lake Storage Gen2 accounts cannot use object replication at all. Azure Files gets GRS only for standard HDD shares, even in paired regions, and Microsoft's suggestion for nonpaired regions is a second account per region kept in sync with AzCopy, Data Factory or Azure File Sync, with conflict handling you build. Queue and Table Storage have no alternative in the table. A reasonable reading is that queues are rebuilt from their producers and tables are written to a second account by the application. ^[6][10][2]

Keys and secrets

Key Vault replicates across zones inside a region and copies vault contents to another region only when the region has a pair in the same geography. Microsoft lists Brazil South, Brazil Southeast, West US 3 and every region without a pair as having no Microsoft-managed cross-region replication or failover. Its documented alternative is a separate vault in each region, backup and restore to keep secrets consistent, and application logic that switches vaults. ^[7]

The backup route hits a limit in exactly this case. A Key Vault backup can be restored only to a vault in the same subscription and the same Azure geography. Each nonpaired region is the only region in its geography in Microsoft's list, so a reasonable reading is that a backup taken in Italy North can be restored only in Italy North: protection against deletion, not against losing the region. The same guide also says backup and restore can copy a vault to another region of your choice, which conflicts with its own geography rule for these regions, so this guide follows the more specific restriction. ^[4][7]

Fill each regional vault from the system that created the secret, such as the deployment pipeline or the certificate issuer, and where each data store has its own customer-managed key, create a separate key per region. Where the same key material must decrypt data in both regions, Managed HSM can extend a pool to one additional region, with both active. Writes can take up to six minutes to replicate, the extension up to 30 minutes, and billing doubles. Poland Central and Qatar Central cannot currently be extended regions, although any Managed HSM region can be a primary. Behind all of this is Microsoft's sovereignty rule: place keys where replicated data lives, because keys held only in the primary may be unavailable during its outage. ^[11][5]

Backups that leave the region

Azure Backup needs the vault in the same region as the data source, and its GRS and cross-region restore work only between paired regions. Without GRS, an outage of the vault's region may leave backup items visible, but the backup data is unavailable for restore. In a nonpaired region a Recovery Services vault is therefore protection against deletion, corruption and ransomware, through soft delete with a 14-day default and immutable vaults, not a copy for regional recovery. Even in a pair, Microsoft puts the backup RPO for a region outage at up to 36 hours: a 24-hour schedule plus up to 12 hours of replication. ^[12]

Replace it per workload. For virtual machines, Site Recovery replicates between any two regions, and Microsoft recommends placing its vault in the target region so that failover does not depend on the source region. For managed disks, a managed copy moves an incremental snapshot to another region and sends only the changes since the last copied snapshot; full snapshots cannot cross regions, and each disk's snapshots copy one at a time, in creation order. For SQL Database, failover groups and active geo-replication work in all regions; for backup copies outside the region, Microsoft suggests exporting the database to a storage account that object-replicates elsewhere. ^[13][14][8]

Cosmos DB periodic backups go to the paired region by default; in a nonpaired region, cross-region protection comes from adding regions to the account, which is replication with consistency tradeoffs rather than a backup. AKS Backup can restore from its vault tier to another region only when that region is the pair, so a second cluster deployed from code is the cross-region answer. A copy in another region that the same administrators can delete is still exposed to the same compromise, so isolate the authority over those copies as well as their location. ^[2]

When the pair needs an access request

Eight regions open to every customer are paired with a restricted-access region: Australia Central, France Central, Germany West Central, Norway East, South Africa North, Sweden Central, Switzerland North and UAE North. Microsoft restricts access to those regions to support specific customer scenarios, such as disaster recovery within a geographic area, and grants access through a support request. ^[4][3]

The service table does not separate restricted pairs from open ones, so the pair-only features are listed as available. The difference appears when you deploy into the pair yourself. Site Recovery reserves restricted regions for in-country recovery, for example Switzerland West for Switzerland North customers, France South for France Central and Germany North for Germany West Central, and requires both the source and the target subscription to be allow-listed. Brazil South can act only as a Site Recovery source, and Brazil Southeast only as a target. ^[2][15]

The request goes through Help and support as a quota request: for reserved regions the quota type is Other Requests, the description names the region and the organization, and it lists the initial compute, storage and SQL quota. Azure engineering validates the request and may contact you, and the page gives no turnaround time. File it during design for every subscription that might hold recovery resources. It also follows that a cross-region restore into a restricted pair creates resources in a region your subscription may not yet be allowed to use, so a backup plan that relies on the pair is untested until that access exists. ^[3][12]

Choose the recovery region

Settle residency before latency. Microsoft's sovereignty guidance says a workload that must stay within a jurisdiction should recover inside the same boundary, and that when no compliant secondary region exists the design should use single-region reliability with backup-based recovery and document the recovery tradeoffs. For the 13 nonpaired regions the geography holds only one region, so the question is whether the obligation is national or wider, for instance the European Union. That is a legal reading, not an engineering one, so record who made it. If the boundary is national, three availability zones and in-region backups are the design, and losing the region is an accepted, written gap. ^[5][4]

Latency comes next, and the table uses Microsoft's own measurements: median round-trip times over the 30 days ending July 30, 2026, read from the nonpaired region as the source because the values are directional. Italy North is 9 ms from Switzerland North, but Switzerland is a separate geography outside the European Union. Israel Central's nearest region open to every customer is Austria East at 48 ms. Restricted-access regions are left out because Site Recovery reserves them for in-country customers, and Chile Central is not in Microsoft's tables. Asynchronous replication tolerates any of these distances; synchronous designs and chatty application tiers do not. ^[16][15]

Then check capacity and services. Site Recovery makes you responsible for confirming that the target region offers the VM sizes you need and has capacity, and recommends on-demand capacity reservations so the compute exists when you fail over. Confirm that every service in your inventory is offered in the candidate region, that Managed HSM can be extended there if you need shared keys, and that maintenance windows differ between the two regions. ^[13][11][8]

The fragment below inventories what runs in three nonpaired regions and prints Azure's own pairing metadata for the regions the subscription can use. The metadata.pairedRegion field comes from the Subscriptions List Locations API, version 2022-12-01; compare its output with the N/A rows in Microsoft's table. ^[17]

# Example fragment: read-only inventory. Needs Reader on the subscriptions queried.
# The resource-graph extension installs itself on first use of az graph.
az graph query -q "Resources
| where location in~ ('italynorth', 'polandcentral', 'spaincentral')
| summarize resources = count() by type, location
| order by resources desc" --first 100

# Pairing metadata for the regions this subscription can use.
az account list-locations \
  --query "[?metadata.regionType=='Physical'].{region:name, geography:metadata.geography, pairedWith:metadata.pairedRegion[0].name}" \
  --output table

Decide the design

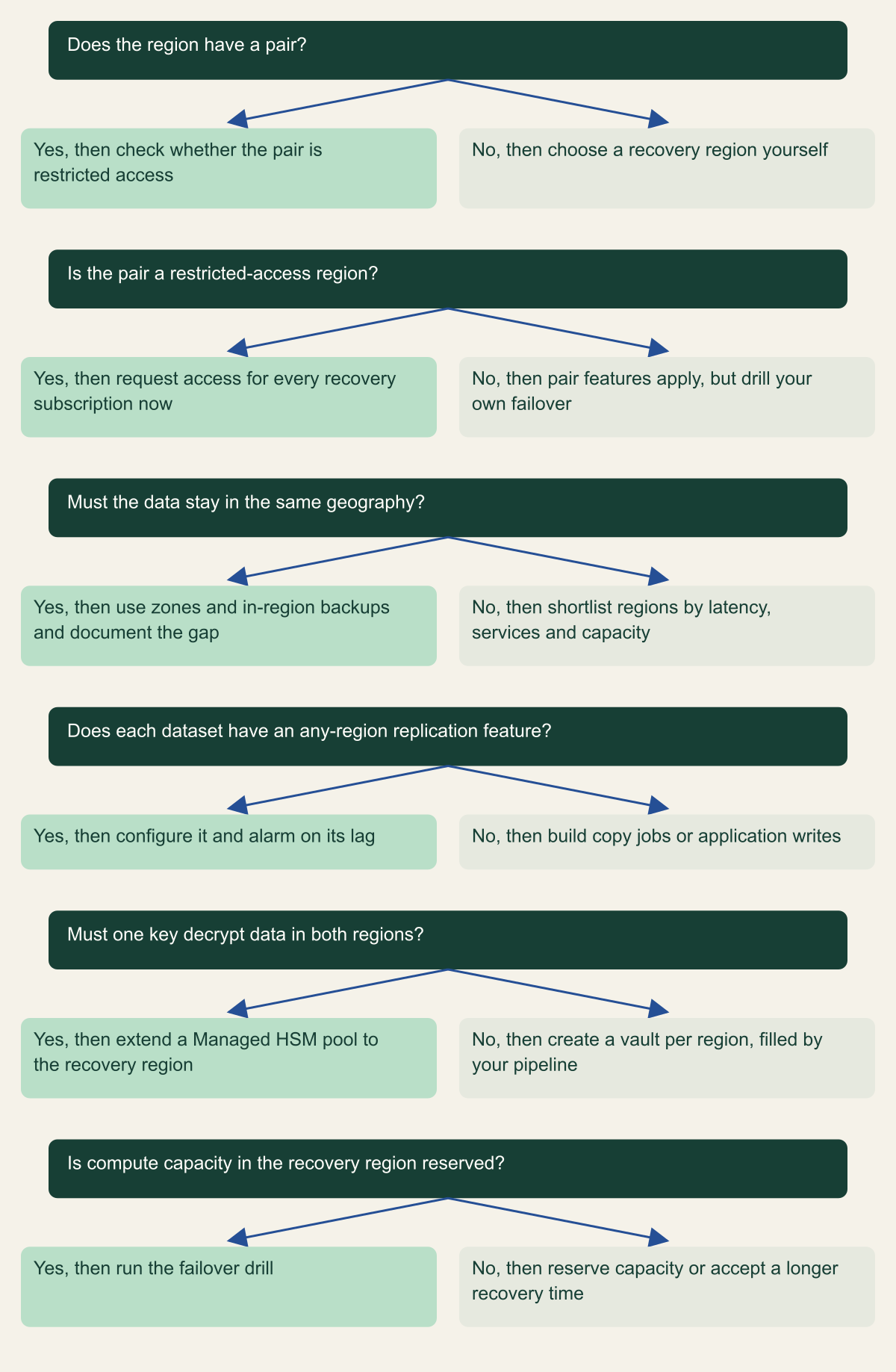

The tree turns the preceding sections into six questions, asked in order for each workload. The first two classify the region. The third is the residency decision, and a yes there ends the cross-region branch for that data. The last three are per service: whether each dataset has a replication feature that works between any regions, whether one key must decrypt data in both places, and whether compute in the recovery region is reserved or merely hoped for.

Two answers are easy to get wrong. A restricted pair can look like an open one until a restore or Site Recovery target fails for lack of access, and object replication can look like a backup even though it replicates deletions. Both surface only in a drill. ^[9][15]

Source. Conceptual decision aid based on Microsoft's region pairs, multiregion support, sovereignty, Key Vault, Managed HSM and Site Recovery documentation reviewed October 10, 2026. ^{[1][2][5][7][11][13][15]}

Method. Conceptual ordering of documented guidance. Answer the first three questions once per workload and the last three once per service or dataset.

Accessible table and figure data

Figure 3 accessible table

Question	Yes, then	No, then
Does the region have a pair?	check whether the pair is restricted access	choose a recovery region yourself
Is the pair a restricted-access region?	request access for every recovery subscription now	pair features apply, but drill your own failover
Must the data stay in the same geography?	use zones and in-region backups and document the gap	shortlist regions by latency, services and capacity
Does each dataset have an any-region replication feature?	configure it and alarm on its lag	build copy jobs or application writes
Must one key decrypt data in both regions?	extend a Managed HSM pool to the recovery region	create a vault per region, filled by your pipeline
Is compute capacity in the recovery region reserved?	run the failover drill	reserve capacity or accept a longer recovery time

Figure 3 accessible table

Question	Yes, then	No, then
Does the region have a pair?	check whether the pair is restricted access	choose a recovery region yourself
Is the pair a restricted-access region?	request access for every recovery subscription now	pair features apply, but drill your own failover
Must the data stay in the same geography?	use zones and in-region backups and document the gap	shortlist regions by latency, services and capacity
Does each dataset have an any-region replication feature?	configure it and alarm on its lag	build copy jobs or application writes
Must one key decrypt data in both regions?	extend a Managed HSM pool to the recovery region	create a vault per region, filled by your pipeline
Is compute capacity in the recovery region reserved?	run the failover drill	reserve capacity or accept a longer recovery time

Download imageDownload table CSV

Test the replacements, not the pair

Paired-region features come with drills: planned failover for GRS accounts and cross-region restore for Azure Backup. The replacements need their own. For object replication, check the replication status on source blobs and the pending bytes and pending operations metrics, then rehearse promotion on a non-production policy by removing the rule and writing to the destination. For Site Recovery, Microsoft suggests test failovers every quarter or every six months. For Key Vault, run the application against the secondary vault and confirm that it holds the current versions of what it needs. For SQL Database, fail the failover group over and back during a window. ^{[6][12][9][13][8]}

For an EU financial entity, DORA Article 12 frames the evidence. It requires backup and restoration procedures that are tested periodically, redundant ICT capacities for entities other than microenterprises, and, for central securities depositories, a secondary processing site at a geographical distance with a distinct risk profile. Article 12 never mentions region pairs. A reasonable reading is that a nonpaired primary region is compatible with it and that a pair would not satisfy it alone; the recovery region you choose and the drill records carry the evidence. ^[18]

Write down the measured replication lag, the time to promote each store, whether reserved capacity was there and which access approvals were needed, next to the objectives they are meant to meet. The gaps between those numbers are the findings.

First steps for a region without a pair

One rule decides most of the design: if a capability appears only in the paired column of Microsoft's table, assume you do not have it until you have configured its any-region replacement and watched it work in a drill. Then work in this order.

• Classify each region as open pair, restricted-access pair or no pair from Microsoft's table, and record the date you read it.
• Inventory the resources in the region and mark each as pair-only, any-region or no built-in support.
• Settle the residency boundary, choose the recovery region and file access requests for every subscription involved.
• Put keys in the recovery region before data, through regional vaults or Managed HSM.
• Configure replication per service and alarm on its lag; move backup copies out with Site Recovery, snapshot copies and exports.
• Reserve recovery capacity or accept, in writing, the longer recovery time.
• Drill each replacement, record the measured results, and recount Microsoft's tables at every review.
